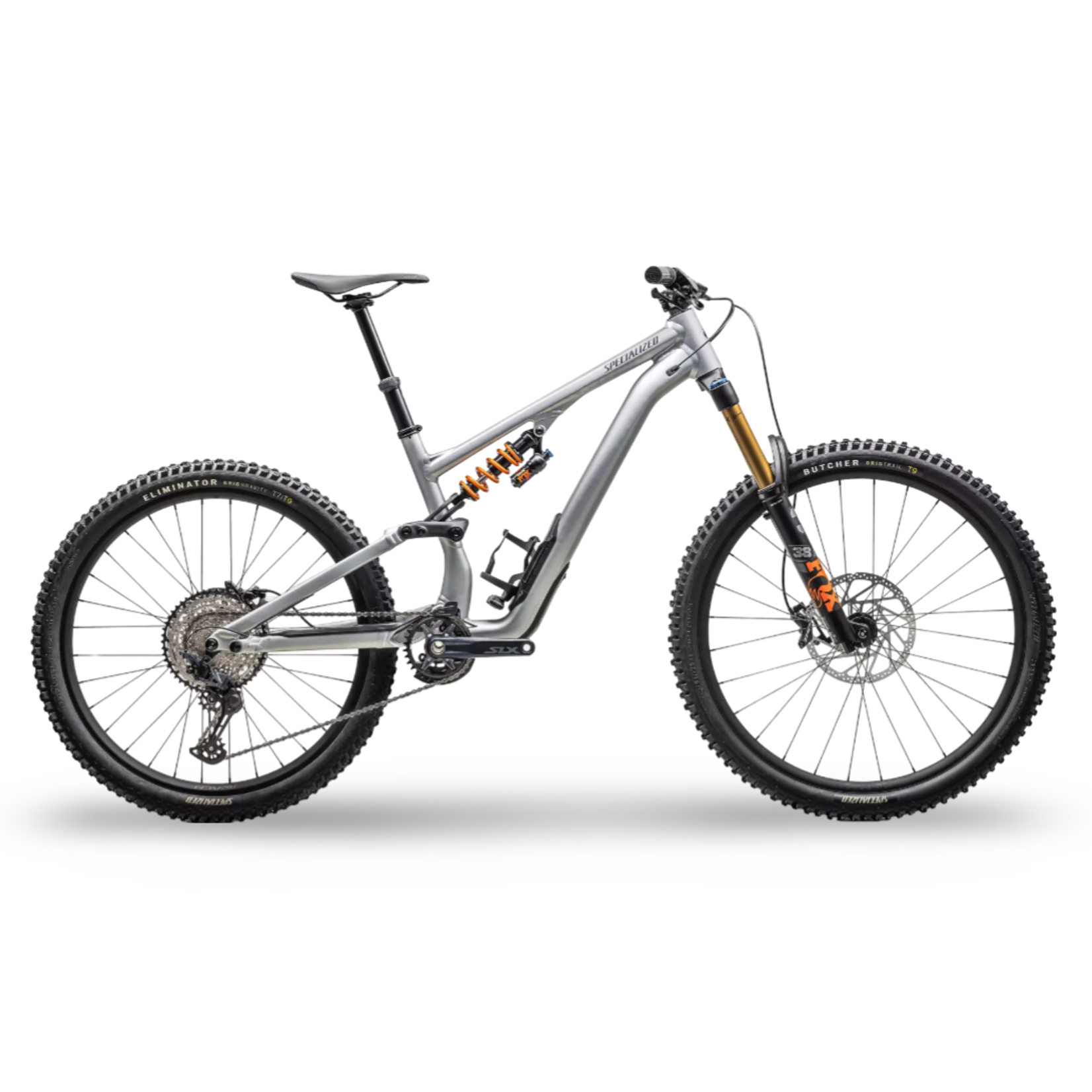

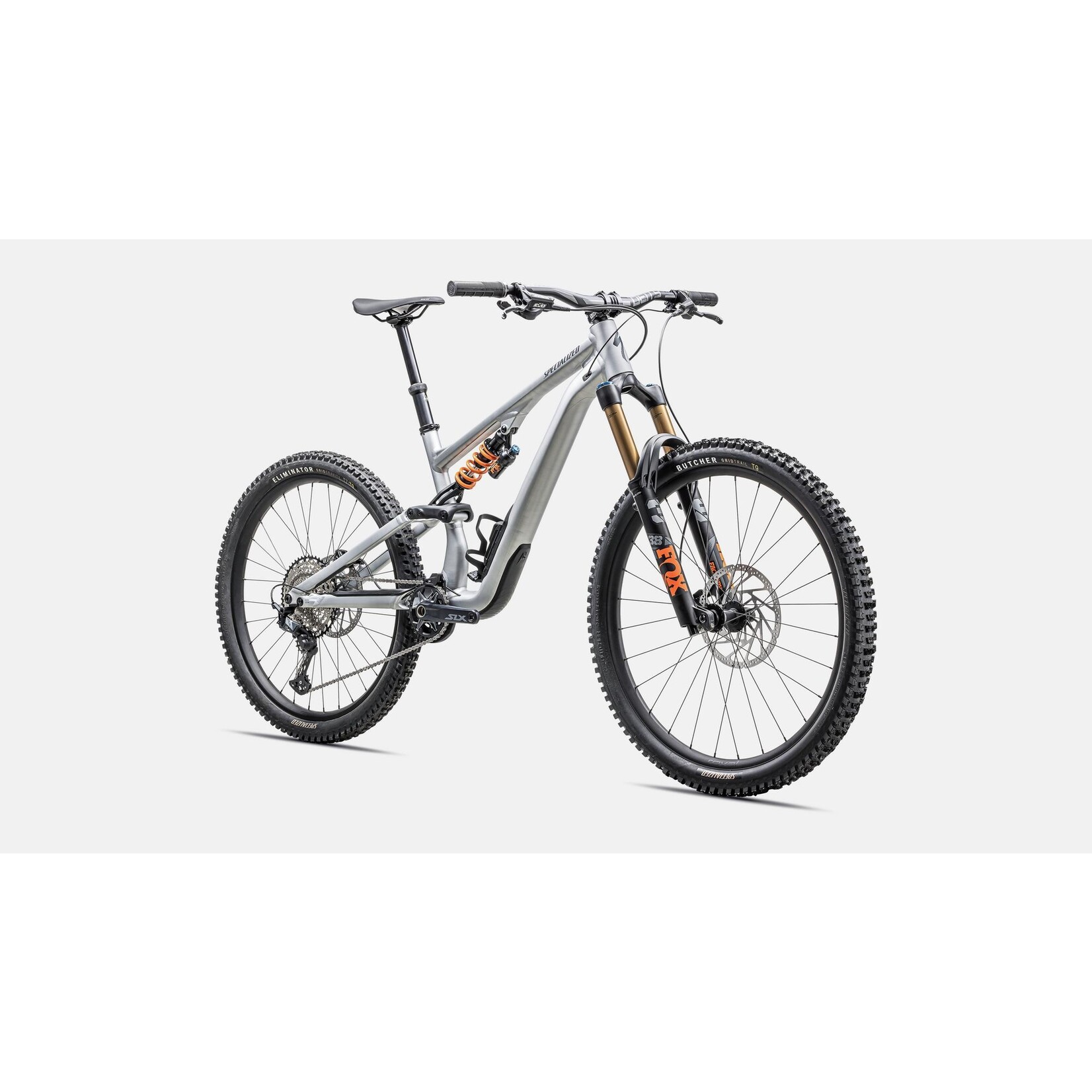

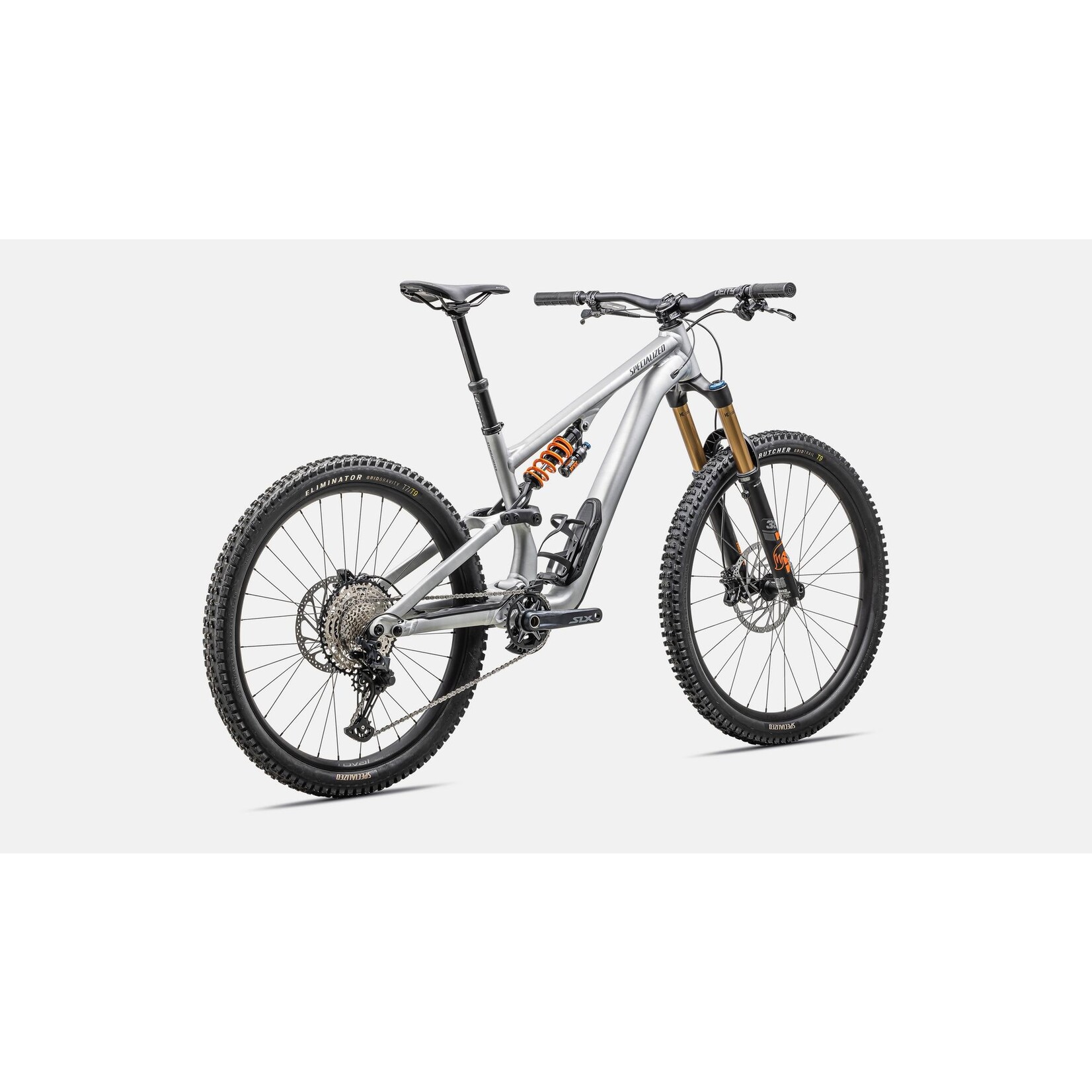

Specialized Stumpjumper 15 Fox Coil Alloy

C$7,500.00
Excl. tax

Stumpjumper 15 Alloy is here to obliterate every trade-off in the trail game.

On backorder (Delivery timeframe: Contact us for availability: [email protected] - 514-505-3895)

Available in store

Close
Add to wish list Add to wish list

Stumpjumper 15 Alloy is here to obliterate every trade-off in the trail game. Devour bumps like a big bike? Check. Short-travel control, playfulness, and efficiency? Double check. How about a heaping helping of personalization to make it perfect for the only rider who really matters—you?  Check, check, check.

KINEMATICS PERFECTED: As the quintessential trail bike, Stumpjumper 15 Alloy balances efficiency and optimal bump force management. For the anti-squat on Stumpjumper 15 Alloy, we struck a balance between the previous Stumpjumper and Stumpjumper EVO, as both had excellent pedaling characteristics.

HONED GEOMETRY: This bike’s geometry delivers big bike capability when you need it, a nimble feel in tight sections, and lively, efficient climbing manners. The generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack head tube angle, and optimized fork offset keep things stable in the rough.

RIDE YOUR WAY: The Stumpjumper 15 Alloy seamlessly integrates benchmark geo adjustability, making it the most personalizable trail bike ever. Six distinct geometry settings allow you to hone performance for any style and any terrain. The head angle and bottom bracket can be fine-tuned for stability or clearance.

FORM FOLLOWS FUN: We can make a frame as stiff as we want, but there’s such a thing as too stiff. To be one with the bike requires engineered compliance in the frame. We engineered the M5 Alloy chassis—front end, rear end, and the link between them—as a single unit that hits the stiffness target we established for trail riding.

WHEEL SIZE: All coil-sprung models come with mixed wheels.

WHEEL CHOICE: With our aftermarket link shock links, you can choose between big wheels front and rear or mix things up with a 27.5” rear for a more responsive and playful ride. No matter what you choose, geometry is unaffected.

CARRY IT ALL: SWAT on Stumpjumper 15 elevates downtube storage, an innovation we pioneered.

MORE RELENTLESS THAN YOU: Our full-suspension bikes are built to be relentless, designed to endure years of hard riding, and backed by the best support and programs to keep you on the trail. Our unbeatable lifetime, no-questions-asked replacement suspension pivot bearings to the original owner is just one way we've got you covered.

  • All-new M5 alloy frame with SWAT door integration
  • Roval Traverse alloy wheels with DT Swiss hubs

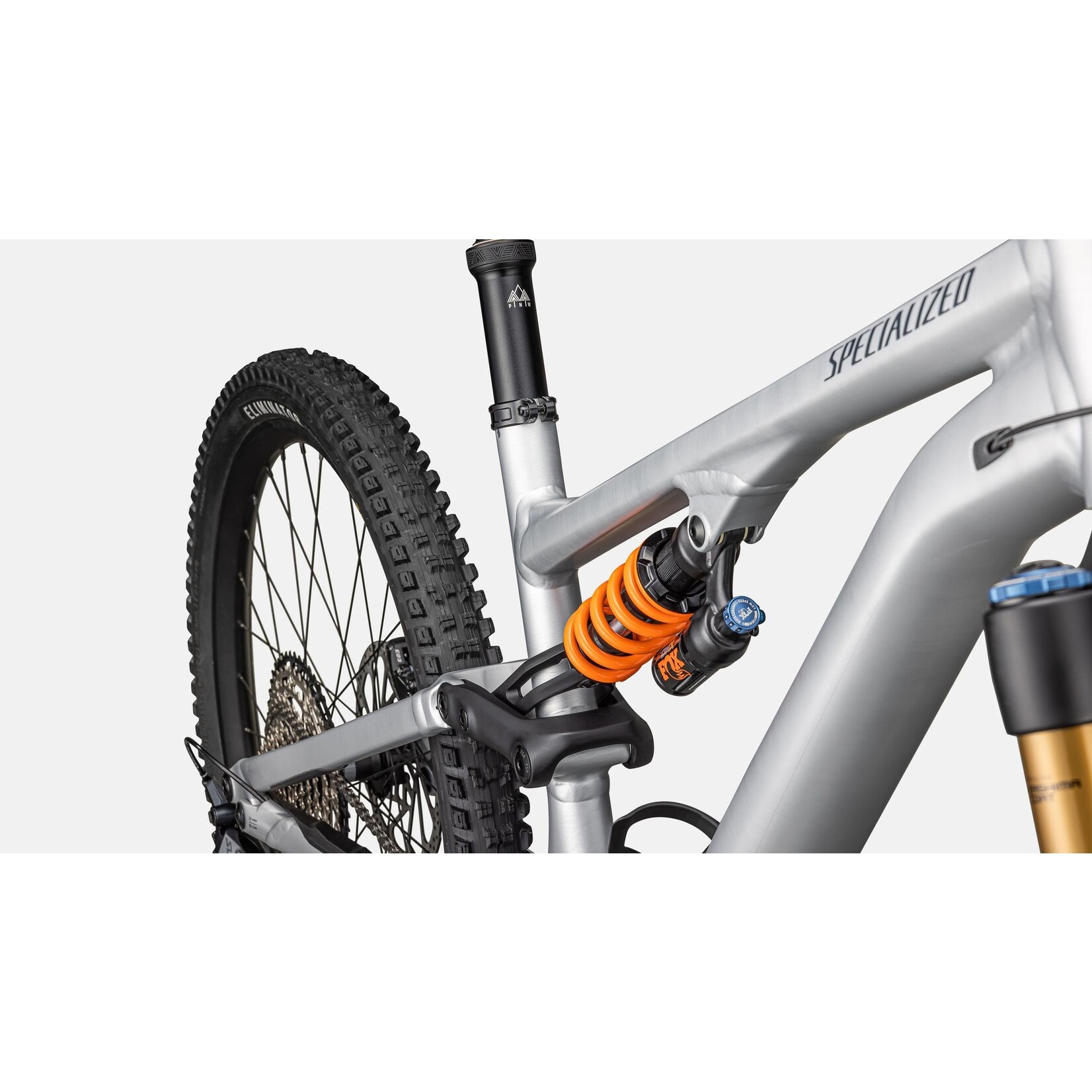

  • Ride Dynamics Tuned FOX DHX Factory coil shock
  • Beefy FOX FLOAT 38 Factory fork with GRIP X2 damper
  • Performance-focused and durable Shimano SLX drivetrain
  • Big stopping power from TRP Trail EVO 4-piston brakes
  • Adjustable travel PNW LOAM dropper post
  • Lifetime replacement of suspension pivot bearings to the original owner



Technical Specifications

Frameset

SWAT

SWAT internal downtube storage

Frame

M5 Alloy chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel

Seat Binder

Alloy, 38.6mm

Suspension

Rear Shock

FOX DHX Factory, Ride Dynamics Trail Tune, 210x55mm, S2: 400lbs, S3: 450lbs, S4: 500bs, S5: 550lbs, S6: 600lbs

Fork

FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm QR axle, 44mm offset, 160mm of travel

Brakes

Front Brake

TRP DH-R EVO, 4-piston caliper, hydraulic disc, 220mm

Rear Brake

TRP DH-R EVO, 4-piston caliper, hydraulic disc, 203mm

Drivetrain

Shift Levers

Shimano SLX, M7100, 12spd

Rear Derailleur

Shimano SLX, M7100, SGS, 12-speed

Cassette

Shimano SLX, CS-M7100, 12-speed, 10-51t

Chain

Shimano SLX, M7100, 12-speed

Crankset

Shimano SLX, M7120, 32T ring, 55mm chainline, S2-S3:165mm, S4-S6: 170mm

Bottom Bracket

Shimano, BB-MT801, Threaded

Wheels & Tires

Rims

Roval Traverse, hookless alloy, 30mm inner width, tubeless ready, Front: 29, Rear: 27.5

Front Hub

DT Swiss 370, 15x110mm, 28h

Rear Hub

DT Swiss 370, 12x148mm, 32h

Spokes

Sapim Force

Front Tire

Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Rear Tire

Eliminator, GRID GRAVITY casing, GRIPTON® T9/T7 compound, 2Bliss Ready, 27.5x2.3"

Inner Tubes

Standard, Presta valve

Cockpit

Stem

Deity, 35mm clamp, 35mm length

Handlebars

Deity, Racepoint, 5-degree upsweep, 9-degree backsweep, 810 width, S2: 25mm rise: S3-S6: 38mm rise

Grips

Deity, Knuckleduster, Black

Saddle

Bridge Comp, Hollow Cr-mo rails, S1-S2: 155mm, S3-S6: 143mm

SeatPost

PNW Loam OE Dropper, tool-less travel adjust, Range lever, 34.9, S2: 150mm, S3: 170mm, S4-S6: 200mm

Product Details

Product ID

257786

Weight

Weight

16.90 kg (37 lb, 4.1 oz)

Weight Size

S4

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

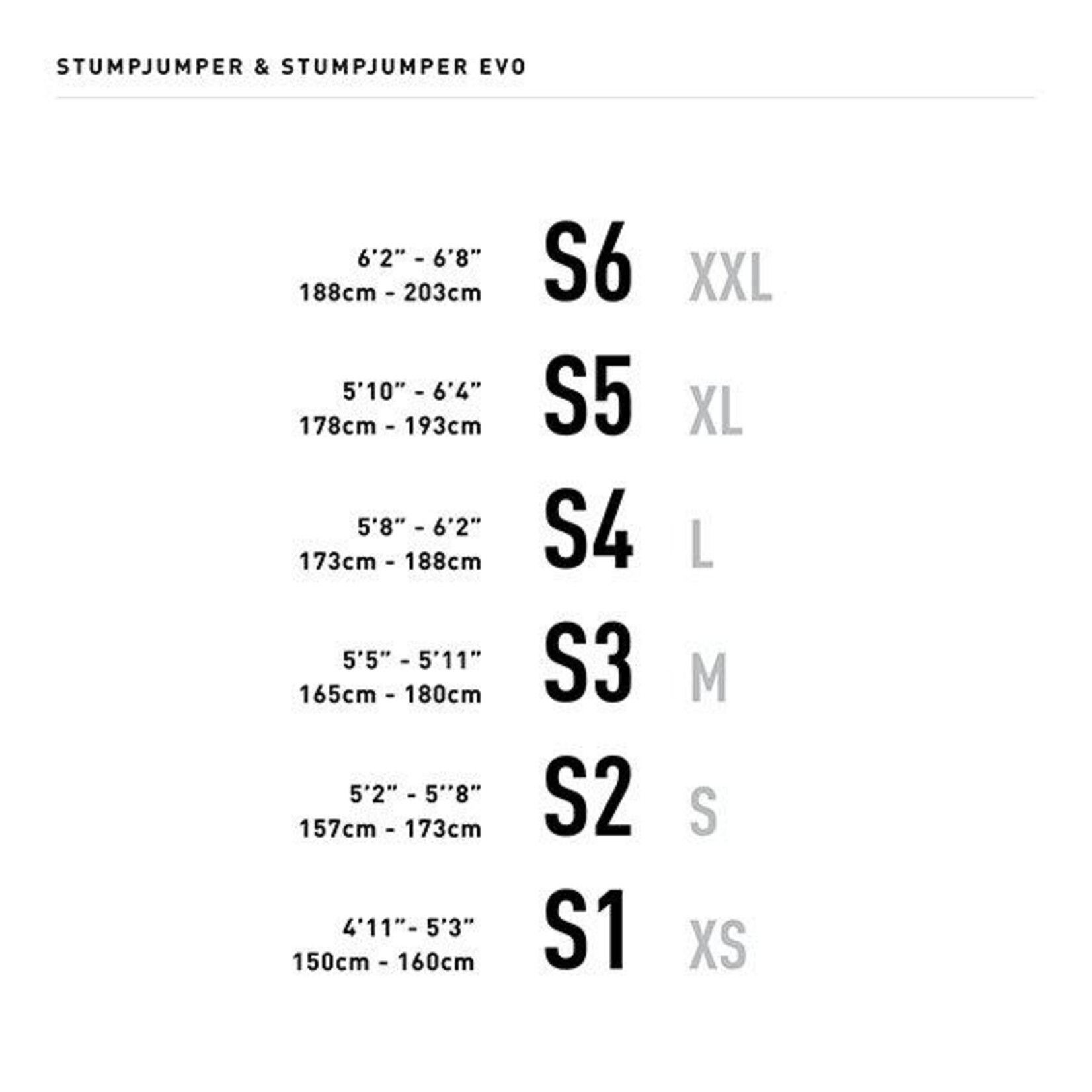

Geometry

  S2 S3 S4 S5 S6
Crank Length 165mm 165mm 170mm 170mm 170mm
Handlebar Width 810mm 810mm 810mm 810mm 810mm
Stem Length 35mm 35mm 35mm 35mm 35mm
Saddle Width 155mm 143mm 143mm 143mm 143mm
Seatpost Length 150mm 170mm 200mm 200mm 200mm
Stack 621mm 630mm 644mm 657mm 671mm
Reach 420mm 445mm 470mm 495mm 525mm
Headtube Length 100mm 110mm 125mm 140mm 155mm
Headtube Angle 64° 64° 64° 64° 64°
BB Height 340mm 340mm 340mm 340mm 340mm
BB Drop 35mm 35mm 35mm 35mm 35mm
Trail 134mm 134mm 134mm 134mm 134mm
Fork Length (full) 573mm 573mm 573mm 573mm 573mm
Fork Rake/Offset 44mm 44mm 44mm 44mm 44mm
Front Center 755mm 785mm 816mm 848mm 884mm
Chainstay Length 432mm 432mm 432mm 442mm 442mm
Wheelbase 1186mm 1216mm 1247mm 1288mm 1325mm
Top-tube Length (horizontal) 574mm 596mm 625mm 649mm 678mm
Bike Standover Height 751mm 745mm 745mm 745mm 751mm
Seat Tube Length 385mm 405mm 425mm 445mm 465mm
Seat Tube Angle 76.5° 76.5° 76° 76° 76°
Saddle Height for Effective ST Angle 690mm 735mm 780mm 825mm 870mm
Max Seatpost Insertion 245mm 255mm 255mm 285mm 285mm
Min Seatpost Insertion 80mm 80mm 80mm 80mm 80mm
